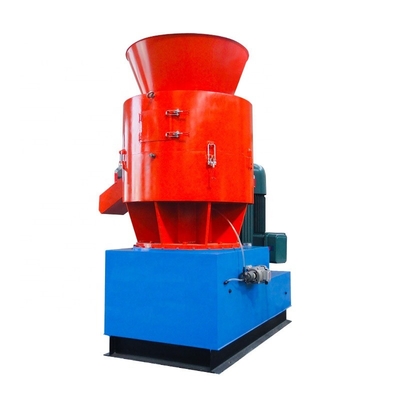

Die Flat Pressing Diesel Engine Cat Litter Compressed Agricultural Waste Electric Industrial Wood Sawdust Pelletizer Machine Production Line PRI

10 Sets
MOQ
$650.00(>=10 Sets)
preço
Die Flat Pressing Diesel Engine Cat Litter Compressed Agricultural Waste Electric Industrial Wood Sawdust Pelletizer Machine Production Line PRI
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Applicable Industries: Manufacturing Plant, Farms
Showroom Location: None
Condition: New
Type: Feed Pellet Machine
Voltage: 380V
Dimension(L*W*H): 1*0.5*0.77m
Weight: 140 kg
Warranty: 1 Year
Key Selling Points: Automatic
Marketing Type: New Product 2019
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Gearbox, Motor
Max. Capacity: 200KG/H
Application: house made pellet making machine
Name: pellet machine, pellet mill, pellet press machine, pelletizer
Raw material: Rice Straw, grass, stalks, wood sawdust
Feature: Flat Die Pressing
Final product: Biomass Pellet Machine
Pellet size: 2-12mm
Operation: Easy Operation
Power: 8hp
Advantage: High Capacity High Efficient
Production capacity: 100kg/h/200KG/H/500 kg/h
Informação básica
Condições de Pagamento e Envio
Descrição de produto

Product Description

Pellet mills are specially designed equipment for pelletizing powdery biomass materials, including wood dust, crop stalk, bamboo dust, rice husk, peanut shells, bagasse, alfalfa and so on. E.P flat-die roller-driven pellet mills are efficient equipment. You can adjust the compression ratio of the pellet making machine to fit different materials.
HSKL-D120
HSKL-D200
HSKL-D200
HSKL-D250
HSKL-D300
HSKL-D350
Structure & Principle

Components

Gear box : It is made of superior steel. It won’t make much noise when it works. It has good shock absorption function. Compared with traditional belt-driving device, it is more efficient;

Mould and rollers : those are made of high-quality alloy steel, whose hardness is up to 55-60HRC.

Working principle

Firstly, the powdery biomass material is fed into the feeding port of the pellet mill and falls on the mould. Then, the motor
drives the main shaft to rotate and the rotating shaft will drive the rollers to rotate. In the rotating process of the rollers,
powdery material will be squeezed in to the cylinder holes in mould. After some time, the pressed material will come out from the holes in the mould. At this time, the rotating cutter under the mould will cut off the pressed material and finished pellets appear.
Model
HSKL-D200
HSKL-D250
HSKL-D300
HSKL-D350
Power(hp)
15
22
32
42
Capacity (Kg/h)
100-120
180-200
200-350
300-500
packing size(m)
1.2*0.85*0.9
1.35*0.85*0.9
1.5*0.85*1
1.35*1.1*1.1
Weight(Kg)
350/450
580/630
600/680
650/700
Roller(Mm)
60
120
220
450
Mould(Mm)
60
120
220
450
Features & Advantages

Advantages

1. The mould is reversible. Besides, the rollers are made of high-hardness 55-60 RC alloy steel; 2. Different moulds matches with different compression ratio. A pellet mill can be equipped with several different moulds; 3. The pelleting rate and output of E.P pellet making machines are both high; 4. The pellet mill adopts gear driving. The gears are made of high quality alloy steel which is quenched; 5. Stable running, low noise, large capacity, long service life.
Certifications
Why choose us

Our Advantages

1. We have a wealth of project experience and can provide complete technical guidance.
2. Provide integrated installation and complete guidance services

Strong Technical Team

Customized service: customize equipment according to your requirements.
Installation service: send our workers to your country to install the production line.
Packaging & Shipping

Packaging Specification:

Outside Package : Wooden Packing as Exported Standard.
Inner Package : Stretch Film

About Shipping

We can be responsible for the shipping according to the customers's requirments to ship the machines by sea, express or air. Besides, we can cooperate with your agent if you have shipping forwarder in China.
